The Nernst Equation: How Chemical Activity Sets an Equilibrium Cell Voltage

An electrochemical cell does not carry a fixed voltage stamped into its chemistry. Its reversible emf changes with composition. Make a reaction product-rich, dilute a reactant, change temperature, or rewrite the reaction direction, and the equilibrium voltage moves with it. The Nernst equation is the bookkeeping rule that converts that chemical state into an electrical potential.

The detail that matters most is not the calculator button. It is the reaction quotient. It must be built from the same balanced reaction used for E°, in the same direction, using dimensionless activities. That one discipline prevents most wrong signs and most persuasive-looking wrong answers.

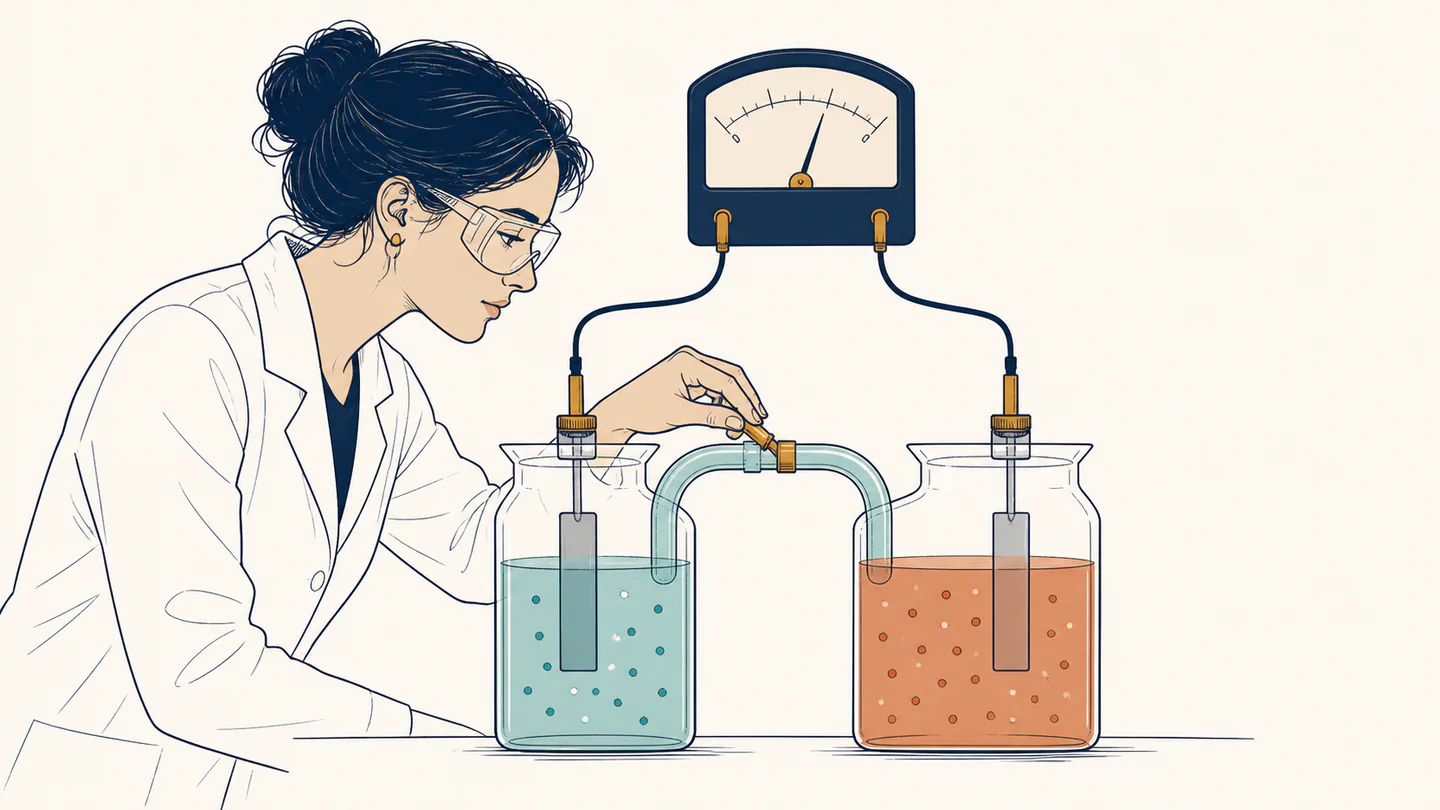

A chemist adjusts a salt bridge connecting teal and terracotta electrochemical half-cells, wired to a simple analog meter — A cell voltage belongs to a specified pair of half-cells, their compositions, temperature, reference conventions, and the reaction direction used to describe them.

For a balanced overall cell reaction written forwardE = E° − (RT / nF) ln Q

At 298.15 K only: E = E° − (0.05915935 V / n) log₁₀Q.

Build Q before touching the voltage

For the reaction as written, form Q from products over reactants, each raised to its stoichiometric power:

Q = ∏ a_i^νᵢ

Activities of products have positive exponents; reactants have negative exponents. Pure solids and pure liquids are omitted only because their standard-state activity is one. Reversing the reaction replaces Q by 1/Q and also reverses E and E°.

EReversible emf or defined equilibrium electrode potentialV

E°Matching standard potential for the same reaction and referenceV

RMolar gas constant8.314462618… J mol⁻¹ K⁻¹

TThermodynamic temperatureK

nElectrons transferred by the balanced reactioninteger

FFaraday constant96485.33212… C mol⁻¹

QReaction quotient from activitiesdimensionless

The constants R and F are exact in the current SI. The temperature is never a Celsius reading, and n comes from stoichiometry—not from a noisy voltage measurement.

The thermodynamic route to the equation

The Nernst equation is a Gibbs-energy statement. For a reaction at stated composition, Δ_rG = Δ_rG° + RT ln Q. A reversible cell turns the maximum non-expansion electrical work into Δ_rG = −nFE. Apply the same relation at standard state and divide by −nF:

Composition changes chemical driving forceΔ_rG = Δ_rG° + RT ln Q

Reversible electrical workΔ_rG = −nFE

Substitute the standard relation−nFE = −nFE° + RT ln Q

RearrangeE = E° − (RT/nF) ln Q

The sign makes a physical check available. A product-rich mixture makes Q larger, so it lowers the emf for the forward reaction. At equilibrium for the completed cell reaction, E = 0 and Q = K, giving E° = (RT/nF) ln K.

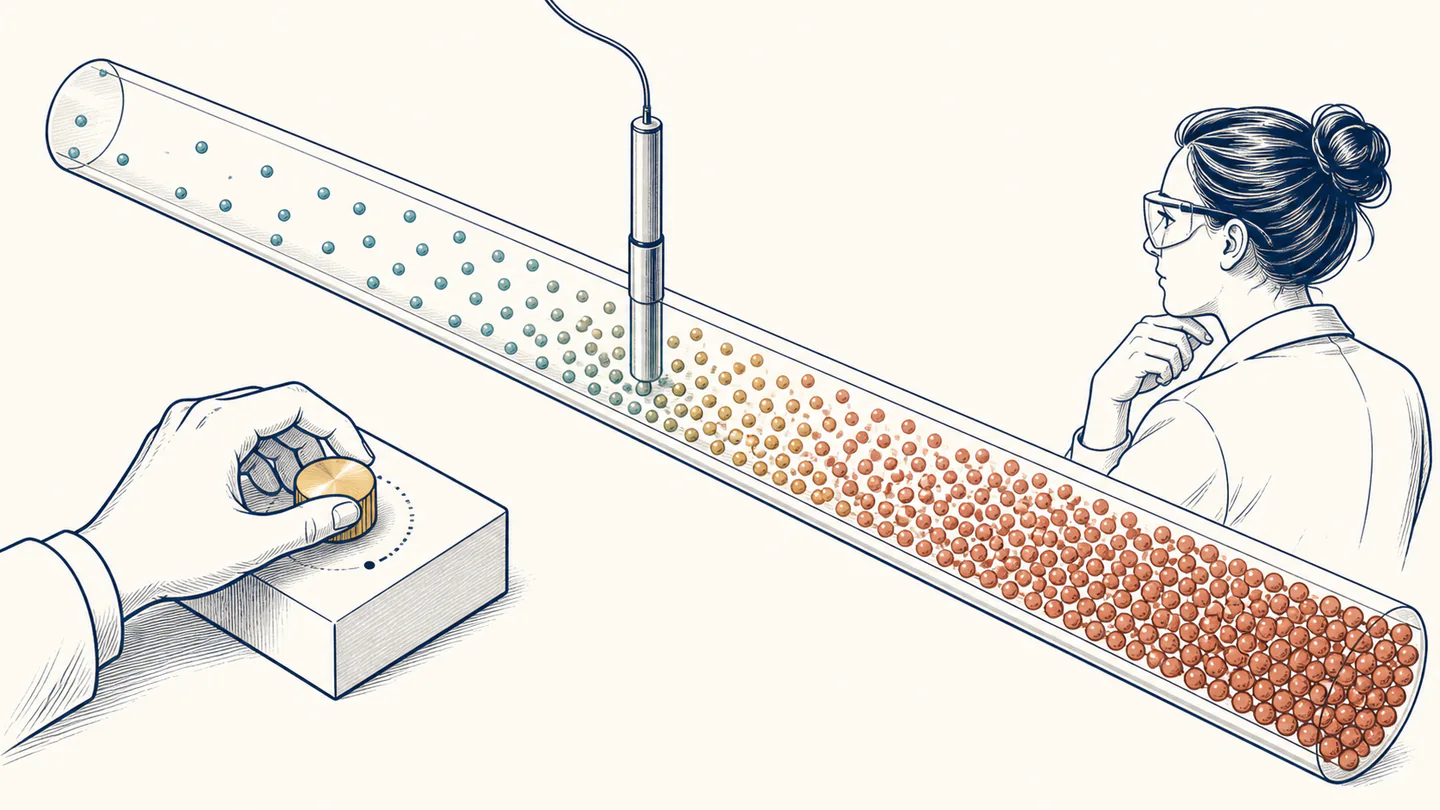

A metal electrode sits in a long transparent channel where sparse teal ions smoothly become dense terracotta ions as an experimenter turns a dial — The equation responds logarithmically to a reaction quotient. Equal additive changes in concentration do not imply equal potential changes; multiplicative activity changes are the natural scale.

The unit check and the 25 °C shortcut

[RT/nF] = (J mol⁻¹)/(C mol⁻¹) = J C⁻¹ = V

ln Q is unitless, so the correction is a voltage. Taking ln(0.10 mol L⁻¹) as a dimensional quantity is not valid; a dilute-solution concentration approximation must first be normalized to the chosen standard state.

At 298.15 K, RT/F = 0.0256925791 V and 2.303RT/F = 0.0591593497 V. The latter belongs with log₁₀, not ln, and it is not a temperature-independent constant.

Useful directions to solve

Forward potentialE = E° − RT ln Q/nF

Reaction quotientQ = exp[nF(E°−E)/RT]

Standard potentialE° = E + RT ln Q/nF

25 °C logarithmic inverselog₁₀Q = n(E°−E)/0.05915935

If one activity is unknown, solve for Q first, then return to the balanced quotient. Do not make n an adjustable fit parameter: changing it changes the chemistry.

Worked example 1: a Daniell-type cell

For Zn(s) + Cu²⁺(aq) → Zn²⁺(aq) + Cu(s), take E° = 1.103 V, n = 2, T = 298.15 K, a_Zn²⁺ = 0.100, and a_Cu²⁺ = 1.000. The solids have unit activity, so Q = 0.100/1.000 = 0.100.

Natural logarithmln Q = ln(0.100) = −2.302585093

PotentialE = 1.103 − [(8.314462618)(298.15)/(2 × 96485.33212)]ln(0.100)

ResultE = 1.132579675 V ≈ 1.133 V

The correction is positive because Q<1. Reverse-check the chemistry, not just the arithmetic: exp[2F(1.103−1.132579675)/RT] = 0.1000000000.

Worked example 2: infer a quotient from open-circuit emf

A stated two-electron cell at 25 °C has E° = 0.8000 V and an equilibrium/open-circuit emf of E = 0.7408406503 V. Use the decimal-log form:

Log quotientlog₁₀Q = 2(0.8000−0.7408406503)/0.0591593497 = 2.0000000

QuotientQ = 10² = 100.0

Forward check0.8000 − (0.0591593497/2)log₁₀(100.0) = 0.7408406503 V

If the reaction has a product-over-reactant quotient, its activity ratio is 100. It is not automatically a 100-fold concentration ratio: activity coefficients may matter.

What the Nernst equation does not absorb

Activities, not raw concentrations

At low ionic strength, normalized concentration can sometimes approximate activity. In concentrated or complex solutions, use a stated activity model or measured activities.

Equilibrium, not loaded voltage

Charge-transfer kinetics, mass transport, resistance, transient gradients, and iR drop are outside this equilibrium relation.

Defined references and interfaces

Formal potentials depend on pH, ionic strength, and complexation. A liquid junction can add a potential; a salt bridge reduces it but does not guarantee zero.

Real phases and gases

Use fugacity/activity conventions for nonideal gases and concentrated phases; a partial pressure substitution is itself an approximation.

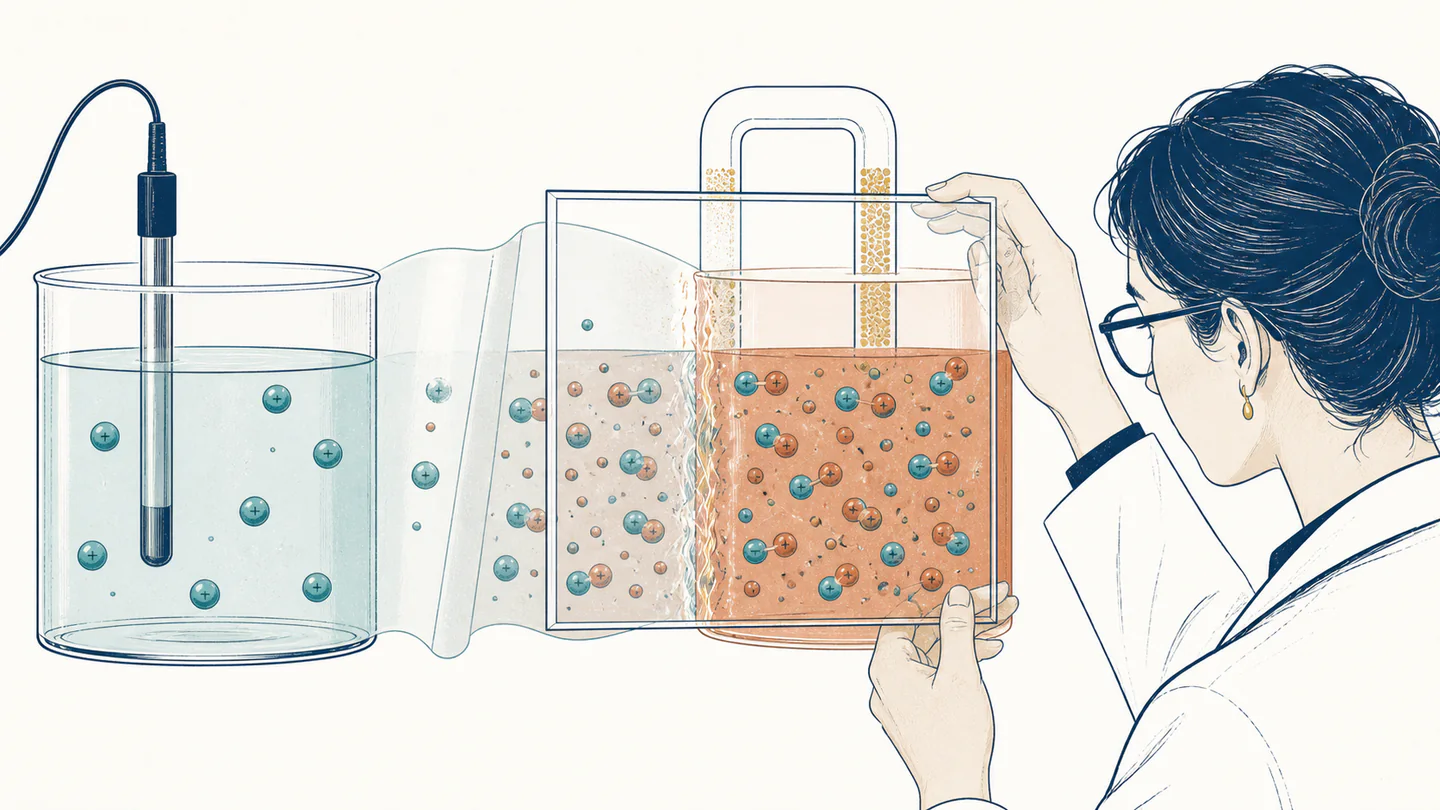

A researcher compares a clear dilute electrolyte with a crowded ionic solution through a transparent calibration frame near an interface — Concentration is often a convenient proxy for activity, not a definition. Crowding, pairing, and junction interfaces are precisely where a simple substitution becomes less trustworthy.

The Nernst equation gives a rigorous equilibrium potential for a stated reaction, temperature, standard-state convention, and reaction quotient. It does not predict the power, rate, lifetime, or terminal voltage of a working device. Keep the reaction direction and activities explicit, and the formula becomes a sharp diagnostic rather than a source of polished ambiguity.
