How calculators work

Why a Calculator Can Show Negative Zero

Negative zero is not a second kind of nothing in ordinary mathematics. It is a directional trace preserved by some finite arithmetic formats.

A display that says -0 looks like a typographical prank. Zero is zero, surely. In ordinary arithmetic, that instinct is right. In some floating-point systems, however, zero can retain a sign bit. The magnitude is zero, but the route into zero was negative.

That distinction is not exposed by every calculator. A particular handheld model may hide it, normalize it, or use a different internal format. Negative zero is best understood as a property of some digital arithmetic systems, not a guaranteed feature of every calculator on a desk.

+0 and -0same ordinary magnitudedifferent directional record

How can zero keep a direction?

Floating-point formats use special encodings for values near the edges of what can be represented. IEEE 754 defines signed zeros along with infinities and NaNs. The sign can matter when a later operation asks a question about direction, division, or a limit.

Think of a thermometer passing through a marked zero. One reading approaches from below; another approaches from above. If the system preserves that approach, it can distinguish the two paths even though both displayed magnitudes are zero.

A minus sign hovering over zero on a number line with positive and negative paths
Negative zero records a direction that ordinary zero notation normally throws away.
Mathematical view+0 and -0 have the same value.
Floating-point viewthe sign can influence later operations.

Underflow is where the ghost appears

Suppose a negative value becomes smaller and smaller in magnitude until the format cannot keep representing its detail. Rounding may collapse it to zero while preserving the sign. This is one route by which a negative zero can appear.

The word underflow sounds dramatic, but it often describes a quiet loss of scale. A very small value is not necessarily wrong; it may simply be below the format’s normal range. The sign bit can survive that collapse.

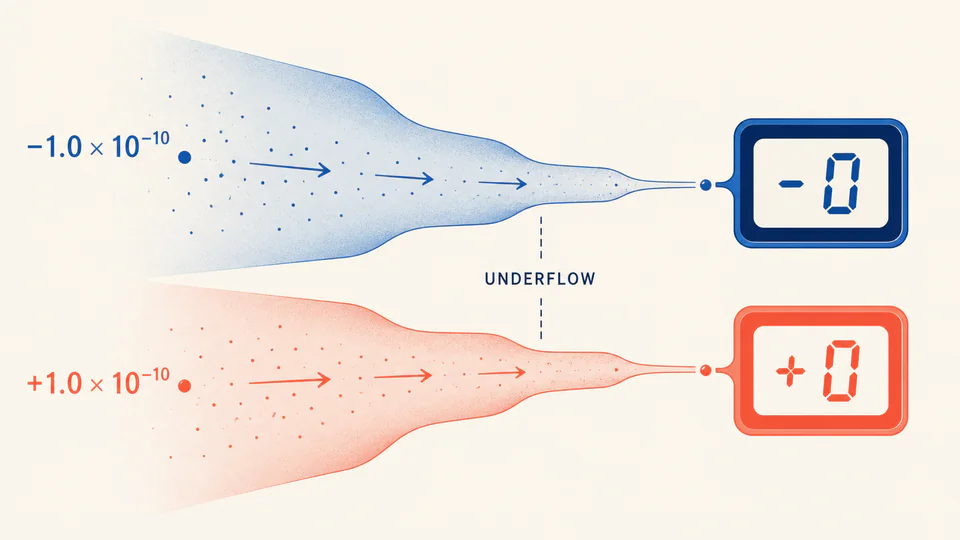

A tiny negative value shrinking through a funnel until it becomes negative zero
When magnitude disappears first, the sign can be the last information left.

Why keep a sign on nothing?

Signed zero helps make certain arithmetic rules continuous across a boundary. It can preserve the sign of a tiny result and help distinguish a one-sided limit. It also makes some exceptional cases deterministic instead of forcing every operation to invent a special rule.

tiny negative valuerounding-0next operationdirection still available

The visual surprise comes from asking a human question of a machine format. We see a symbol that means “nothing.” The format sees a value plus metadata useful for the next calculation.

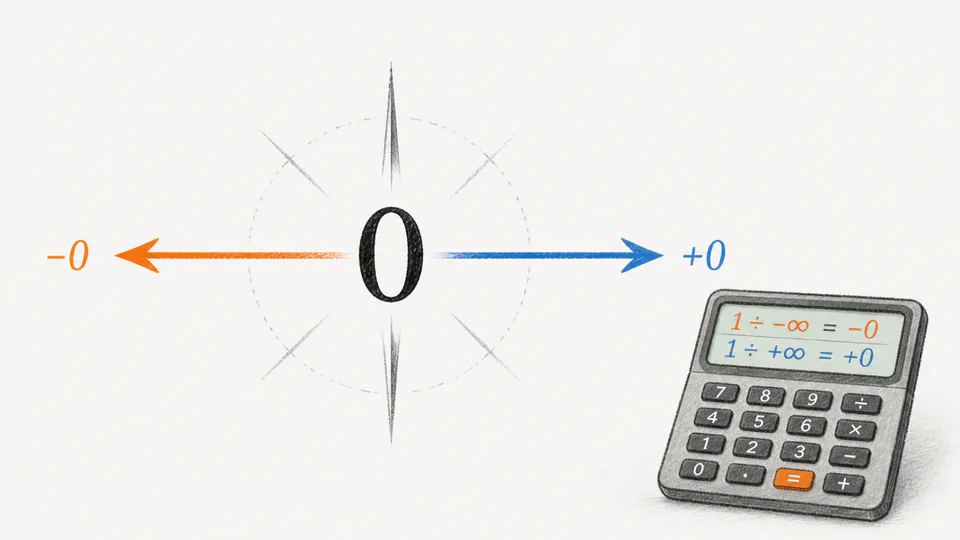

A directional arrow passing through zero while preserving whether it approached from the positive or negative side
Negative zero is a reminder that a stored number can carry a little history.
It is not a second kind of nothing. It is a small record of how nothing was reached.
