Heat Exchanger Capacity Calculator

Predict single-phase counterflow heat-exchanger duty and outlet temperatures from stream heat-capacity rates, inlet temperatures, overall U, and effective area.

COUNTERFLOW THERMAL CAPACITY

Predict exchanger duty without guessing both outlet temperatures

This calculator solves the counterflow effectiveness-NTU model for a single-phase exchanger when both inlet states, stream heat-capacity rates, overall U, and effective area are known. It predicts duty and both outlet temperatures while preserving the same energy transfer on each side. It is suited to preliminary rating and scenario work, not phase-changing service, mechanical design, or a guaranteed vendor rating.

Predicted thermal duty
Counterflow effectiveness
Predicted hot outlet
Predicted cold outlet
Number of transfer units
Temperature-cross margin

COUNTERFLOW THERMAL CAPACITY

ε-NTU capacity and outlet ledger

Use predicted duty and outlets to screen whether the entered UA and flows can approach the required temperature program. Escalate to detailed rating when properties vary, pressure drop matters, flow arrangement differs, or a temperature cross or phase boundary is approached.

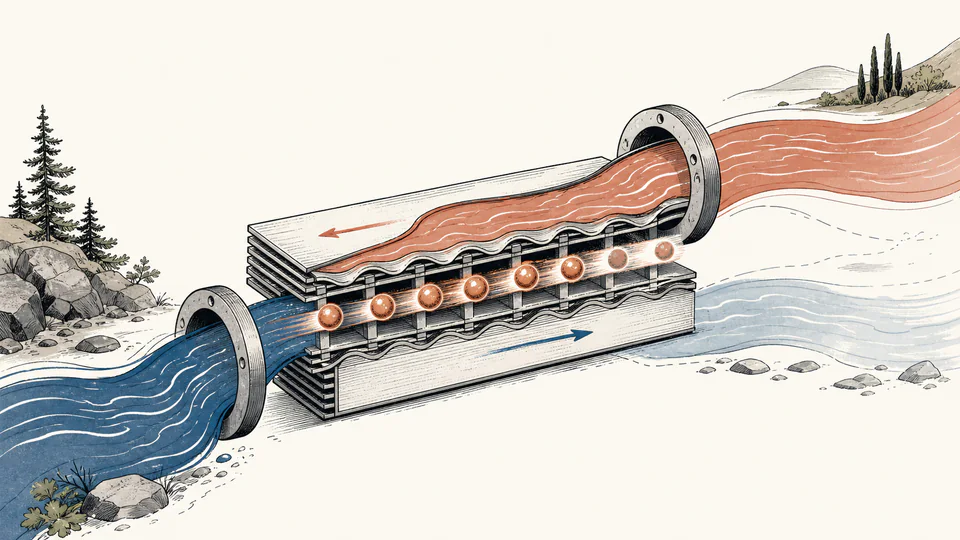

Editorial counterflow exchanger drawn as two opposing rivers through layered plates, with inlet heat divided into delivered duty and remaining temperature headroom
Opposing streams and a finite conductance bridge show why duty depends on both capacity rates and UA—not on area or inlet span alone.
ε-NTU capacity and outlet ledgerUnrounded calculation path
Live calculation ledger based on current inputs
Capacity stageThermal value AThermal value BCalculated valueUnit / meaning

CURRENT CALCULATION PROCESS

Formula, substitution, intermediate values, and reconciliation

NTU = UA/C_min; ε_counter = [1−exp(−NTU(1−C_r))]/[1−C_r exp(−NTU(1−C_r))]; Q = ε C_min(T_hi−T_ci)

The model first establishes hot and cold heat-capacity rates, Cmin and Cmax. UA divided by Cmin gives NTU; the counterflow effectiveness relation then provides duty as a fraction of the inlet-condition maximum. Each outlet is calculated from the same duty, creating an explicit two-stream energy reconciliation.

Current default register: labels, meanings, units, and entered values
Input / symbolEngineering meaning and unitCurrent value
hotMassFlowKgSHot-side mass flow (kg/s) — Positive mass flow at the rating point.3.1
hotCpKjKgKHot-side Cp (kJ/kg·K) — Representative single-phase heat capacity.4.05
coldMassFlowKgSCold-side mass flow (kg/s) — Use the intended counterflow rate.4.4
coldCpKjKgKCold-side Cp (kJ/kg·K) — Use actual composition and pressure.4.18
hotInCHot inlet temperature (°C) — Must exceed the cold inlet temperature.115
coldInCCold inlet temperature (°C) — Use the exchanger inlet, before bypass mixing.28
overallUOverall U (W/m²·K) — Clean or dirty basis must match the rating decision.610
areaM2Effective heat-transfer area (m²) — Area basis must match U.48

    Intermediate values remain unrounded until display formatting.

    HOW TO USE THIS MODEL

    Rate a counterflow exchanger from independent inlet evidence

    1. Confirm the real flow arrangement is counterflow or that counterflow is an approved preliminary approximation; multipass and crossflow equipment may need a correction or different relation.
    2. Enter synchronized mass flows and heat capacities for single-phase fluids, checking that kJ/kg·K times kg/s produces kW/K.
    3. Use inlet temperatures at the exchanger boundary, excluding upstream mixing, bypass, or control-valve leakage unless intentionally modeled.
    4. Enter effective area and U on the same clean or dirty basis, then review Cmin, NTU, effectiveness, duty, and both predicted outlets in sequence.
    5. Check temperature-cross margin, pressure-drop feasibility, fouling, materials, control range, and mechanical design before using the result in procurement or operation.

    COUNTERFLOW THERMAL CAPACITY FUNDAMENTALS

    Why capacity depends on more than UA

    Heat-capacity rate
    mCp in kW/K; it controls how far a stream temperature moves for a given duty.
    Cmin and Cmax
    Smaller and larger capacity rates. Cmin sets the thermodynamic maximum, while their ratio shapes effectiveness.
    UA conductance
    Overall coefficient times effective area, expressed in kW/K after conversion. It represents finite resistance to heat transfer.
    Number of transfer units
    UA/Cmin, a dimensionless measure of exchanger conductance relative to the easier-to-change stream.
    Counterflow effectiveness
    Fraction of the maximum inlet-condition heat transfer achieved by the entered NTU and capacity-rate ratio.
    Temperature cross
    Condition where cold outlet exceeds hot outlet. It can occur in counterflow but demands careful arrangement and terminal checks.

    MODEL AND FORMULA

    Solve effectiveness before duty and outlets

    NTU = UA/C_min; ε_counter = [1−exp(−NTU(1−C_r))]/[1−C_r exp(−NTU(1−C_r))]; Q = ε C_min(T_hi−T_ci)

    The model first establishes hot and cold heat-capacity rates, Cmin and Cmax. UA divided by Cmin gives NTU; the counterflow effectiveness relation then provides duty as a fraction of the inlet-condition maximum. Each outlet is calculated from the same duty, creating an explicit two-stream energy reconciliation.

    DEEPER ENGINEERING ANALYSIS

    Capacity limits revealed by the ε-NTU structure

    Cmin determines the ceiling

    Even an exchanger with very large UA cannot exceed Cmin times the inlet temperature span. Changing the higher-capacity stream may have little effect when the other stream remains limiting.

    U must match operating condition

    Film coefficients change with velocity, phase, viscosity, fouling, wall conductivity, and geometry. A U transferred from another duty can make a precise-looking capacity prediction unreliable.

    Outlet targets can be mutually incompatible

    Specifying both outlets, both flows, and a fixed duty may overconstrain the problem. The ε-NTU method predicts outlets from physical conductance instead of forcing an inconsistent temperature program.

    WORKED DECISION CASES

    Capacity screens before different next steps

    Existing exchanger rerate

    A higher process flow raises one capacity rate but also changes U and pressure drop. The calculator isolates thermal conductance response; vendor software and hydraulic checks follow before approval.

    Heat-recovery concept

    A clean-service estimate predicts useful duty and outlets from available waste heat. The result screens project potential before detailed fouling, control, materials, and economic analysis.

    TECHNICAL LANGUAGE

    ε-NTU rating vocabulary

    Rating
    Prediction of performance for an existing geometry under specified conditions.
    Sizing
    Selection of geometry or area to meet a target; the inverse of a rating problem.
    Conductance
    UA, the reciprocal thermal resistance of the complete exchanger boundary.
    Capacity-rate ratio Cr
    Cmin/Cmax, dimensionless and between zero and one.
    Maximum duty
    Cmin multiplied by hot-to-cold inlet temperature difference.
    Outlet reconciliation
    Use of the same duty to calculate both stream temperature changes.

    EVIDENCE AND DATA LINEAGE

    Input lineage for a credible exchanger rating

    Keep exchanger type and flow arrangement, effective area definition, stream flow and composition, property method and evaluation temperatures, inlet instrument records, U derivation or clean/dirty test basis, fouling state, pressure drops, bypass positions, plate or tube configuration, and all unrounded C, UA, NTU, effectiveness, duty, and outlet results. Compare predictions with a balanced field test before relying on a rerate.

    LIMITS AND EXCLUSIONS

    Where this counterflow capacity model stops

    • The exchanger is modeled as ideal counterflow with constant representative Cp and U.
    • Phase change, heat of reaction, radiation, axial conduction, ambient loss, and thermal storage are excluded.
    • Pressure drop, maldistribution, leakage, bypass, vibration, and control dynamics are not calculated.
    • The model does not size shell, tubes, plates, nozzles, gaskets, or pressure containment.
    • A predicted duty is not a vendor guarantee and should be verified against applicable rating methods and data.

    RELIABLE SOURCES

    References for this page’s method and boundaries

    FREQUENTLY ASKED QUESTIONS

    Questions about the predicted capacity

    Why do I enter only inlet temperatures?

    With flows, properties, U, area, and arrangement known, the ε-NTU method predicts duty and outlets. Entering both outlets would make the screen redundant or overconstrained.

    Can cold outlet be hotter than hot outlet?

    In counterflow, a cold outlet can exceed the hot outlet while remaining below the hot inlet. Verify positive terminal approaches and that the real arrangement supports it.

    What happens when Cmin equals Cmax?

    The implementation uses the counterflow equal-capacity-rate limit ε = NTU/(1+NTU), avoiding numerical division by a vanishing 1−Cr term.

    Does U include fouling?

    Only if the entered basis does. Declare whether U is clean, design-fouled, or measured operating U and keep area and duty interpretation consistent.

    Can this rate a condenser or evaporator?

    No. Phase-changing sides require latent enthalpy, pressure-dependent saturation behavior, and suitable correlations or vendor methods.

    Why can more area have diminishing benefit?

    As NTU grows, effectiveness approaches its asymptotic limit; additional area yields progressively smaller duty improvement at fixed inlet states and flows.

    IMPORTANT ENGINEERING NOTE

    Use detailed thermal and mechanical rating for release decisions

    A qualified exchanger specialist must confirm arrangement, correlations, properties, fouling, pressure drop, maldistribution, phase behavior, control, materials, and mechanical code compliance. Do not operate or procure pressure equipment from this preliminary ε-NTU result alone.
