Cabinet Coverage Calculator
Preserve every cabinet and appliance width so a nominal linear-foot total cannot conceal an overrun or an impractical filler gap.
CABINET WALL-RUN FIT
Test exact cabinet widths against appliances, end clearances, and allowable filler
The wall measurement is reduced by explicit end clearances and appliance openings. Every planned cabinet width remains in order, leaving an exact filler gap or overrun instead of a vague linear-foot estimate.
Layout status-
Cabinet count-
Usable cabinet run-
Cabinet lineup width-
Filler gap / overrun-
Cabinet / usable run-
EDITORIAL FIELD GUIDE
Read the wall run from fixed openings to final filler

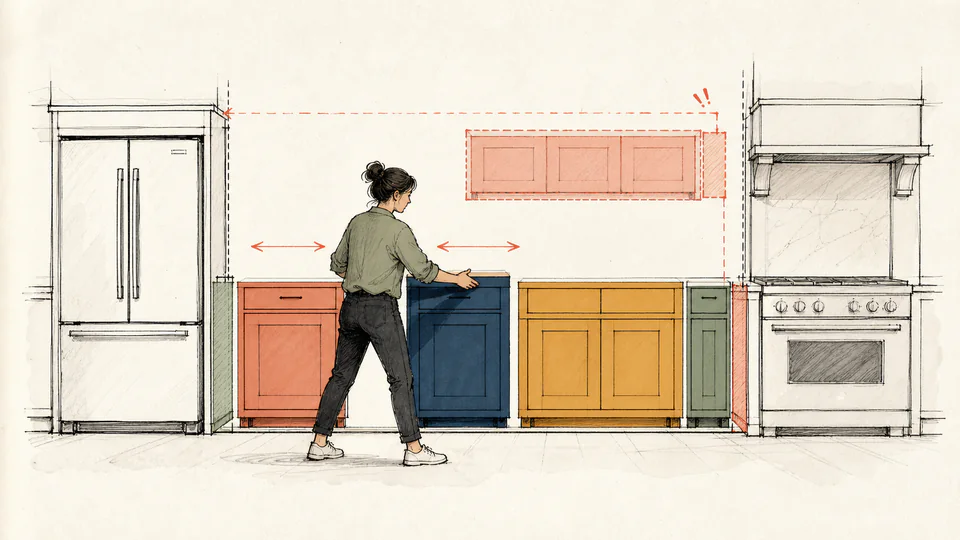

The layout illustration keeps appliances and end clearances fixed while cabinet modules remain in entered order. The ledger exposes each running position, remaining run, final filler gap, or overrun for a buildable fit decision.
| Layout element | Entered width | Running position | Remaining run | Fit rule | Interpretation |
|---|
How to use
Fit an ordered cabinet schedule into the field-measured wall
- Measure finished wall length at the cabinet installation line.
- Enter left and right scribes or clearances required by the design and wall condition.
- Enter appliance openings from current manufacturer specifications.
- List every cabinet width in layout order, including narrow pull-outs and tall units.
- Enter the largest total filler the design can accept without creating a poor fit.
- Review the exact remaining gap or overrun, then resolve corners, doors, panels, and services on the approved drawing.
Layout fundamentals
Nominal linear feet do not prove that cabinet modules fit
- Finished wall length
- Field distance available after relevant finishes and obstructions are considered.
- End clearance
- Space reserved for scribe, trim, door operation, or installation tolerance.
- Appliance opening
- Fixed layout space controlled by current equipment requirements.
- Cabinet run
- Sum of exact cabinet module widths in layout order.
- Filler gap
- Usable run minus cabinet run; negative means overrun.
Calculation method
Remove fixed openings first, then compare exact module width with usable run
Wall length is reduced by both end clearances and the sum of appliance openings. Cabinet widths sum independently in their entered order. The difference is the filler gap; a negative gap identifies an overrun, a small nonnegative gap may fit the declared filler range, and a larger gap requires layout revision.
Field measurement
Check the wall at more than one height and point
Out-of-plumb corners, bowed walls, uneven finish thickness, protruding trim, and floor variation can change usable space. Retain the controlling measurement and show where it was taken instead of entering the largest convenient dimension.
Operational clearance
A dimensionally fitting box can still conflict in use
Doors and drawers need swing and pull clearance. Appliances require manufacturer gaps, ventilation, electrical or plumbing access, and sometimes adjacent filler. Corner cabinets, handles, walls, islands, and passage widths need separate checks.
Filler strategy
Distribute filler deliberately rather than hiding it in one total
The page checks total filler only. The drawing must assign it to left, right, appliance, or cabinet transitions while preserving door operation, symmetry, finished panels, scribes, and installation sequence. Excessive filler can signal a missing module or outdated measurement.
Detailed calculation process
Cabinet wall-run equations and default substitution
Lappliances = sum(appliance openings)Lusable = Lwall - Lleft - Lright - LappliancesLcabinets = sum(cabinet widths)Lfiller = Lusable - Lcabinetscoverage ratio = Lcabinets / Lusablefit if 0 <= Lfiller <= entered maximum filler
- Wall length = 180 in; end clearances = 1.5 + 1.5 = 3 in.
- Appliance openings = 30 + 36 = 66 in.
- Usable cabinet run = 180 - 3 - 66 = 111 in.
- Cabinet run = 18 + 24 + 30 + 18 + 21 = 111 in.
- Filler gap = 111 - 111 = 0 in; cabinet coverage ratio = 100%.
- With a 6 in maximum filler, the default lineup fits arithmetically; detailed clearance review remains required.
The current result cards and ordered layout ledger above provide the final reconciliation.
Result interpretation
Zero gap is exact arithmetic, not necessarily an installable condition
A positive filler gap is space left after the listed modules; a negative value is an overrun. The status compares total gap with the entered filler rule only. It does not account for field tolerances, corner geometry, finished panels, doors, handles, or appliance service clearances.
Decision analysis
Resolve overrun by correcting the layout, not trimming cabinet boxes
Confirm measurements and product dimensions first. Then revise cabinet widths, appliance selection, filler distribution, or end conditions through the designer and supplier. Do not assume a nominal cabinet can be field-cut without affecting construction, warranty, finish, hardware, or performance.
Evidence and data lineage
Retain the field dimensions and the exact ordered module list
Keep measurement date, wall identifier, measurement height, plumb and level survey, finish buildup, left and right constraints, appliance manufacturer and model, rough and finished opening requirements, cabinet manufacturer and SKU, actual box widths, fillers, finished panels, corner and door clearances, service locations, designer revision, installer field verification, and approved corrections.
Limits and exclusions
What this one-dimensional fit check omits
- No height, depth, ceiling, floor, soffit, countertop, or three-dimensional corner geometry.
- No door swing, drawer pull, handle, appliance door, accessibility, passage, or work-triangle clearance.
- No wall bow, out-of-plumb condition, finish thickness change, service conflict, or installation tolerance distribution.
- No structural support, fastening, countertop support, code, or manufacturer compliance.
Key terminology
Cabinet layout terms
- Scribe
- Trim allowance fitted to an irregular adjoining surface.
- Filler
- Non-storage strip closing planned space between elements.
- Finished panel
- Visible decorative side or back attached to casework.
- Appliance opening
- Reserved space governed by equipment and service requirements.
- Blind corner
- Corner arrangement with inaccessible overlap space.
- Controlling dimension
- Smallest verified measurement that governs fit.
Worked decision cases
Two layouts with different failure modes
Two-inch overrun
The lineup exceeds the measured run. The team rechecks the wall and appliance specification, then replaces a module rather than forcing installation.
Professional basis
References for cabinet documentation and installation
Important note
Final cabinet orders should use approved shop drawings and installer-verified field dimensions. A favorable one-dimensional result does not authorize fabrication when appliance, corner, door, service, or finish conditions remain unresolved.
Frequently asked questions
Why list cabinet widths instead of entering one total?
The ordered list preserves module count and supports reconciliation with the approved schedule.
Should fillers be entered as cabinets?
No. This page calculates the total remaining filler gap after cabinet and appliance widths.
Can I enter a zero end clearance?
Only when the approved detail and field condition genuinely require none; many walls need scribe or operational space.
Why can 100% coverage still be a problem?
Exact arithmetic leaves no tolerance for irregular walls, finish buildup, or required operating clearance.
Do appliance widths include side clearances?
Use the current manufacturer's required opening, including any specified ventilation or installation clearances.
Can the tool lay out corner cabinets?
No. Corner geometry is two- or three-dimensional and requires an approved plan or shop drawing.
