Roof Shingle Quantity Calculator
Build a package-level asphalt-shingle takeoff without treating accessories as field-shingle coverage.
PACKAGE-LEVEL ROOF TAKEOFF
Build the field, accessory, underlayment, and fastener order separately
Estimators can convert horizontal footprint and pitch to sloped area, then round field shingles, ridge cap, starter, underlayment, and nails on their own purchase bases.
All shingle-family bundles—
Field bundles—
Ridge bundles—
Starter bundles—
Underlayment rolls—
Planning nail count—
ROOF PURCHASE FAMILY MAP
Round each roofing material only after its own quantity path
The roof geometry produces sloped area once; field waste affects field shingles, while linear accessories and roll goods retain separate yields.
| Material family | Measured basis | Order basis | Whole quantity | Verification |
|---|
How to use
Build the field, accessory, underlayment, and fastener order separately
- Measure complete horizontal projection including the chosen overhang convention.
- Enter a representative pitch only when all planes share it.
- Verify field bundle coverage and waste basis.
- Measure hips, ridges, eaves, and rakes for accessories.
- Use net installed roll coverage after required laps.
- Use the selected fastening schedule, then review all rounded packages.
COMPLETE ROOF ORDER FUNDAMENTALS
Separate field, ridge, starter, membrane, and fastening purchase paths
- Pitch factor
- Converts horizontal projection to one-slope surface area.
- Roofing square
- 100 ft² of roof area.
- Roll net coverage
- Usable area after required laps.
- Fastening schedule
- Nails required per shingle or square under specified conditions.
- Independent rounding
- Packages, rolls, and nails round on separate bases.
CALCULATION METHOD
Calculate each material family from the geometry it serves
Convert footprint and pitch to field area, then calculate field bundles, ridge bundles, starter bundles, underlayment rolls, and fasteners from their own installed yields and rounding rules.
PLANE GEOMETRY
Mixed pitches need plane records
Applying one factor to dormers or porches with different slopes distorts both field area and accessory geometry.
PACKAGE YIELD
Net roll yield differs from package area
Laps, valleys, slope requirements, and membrane zones reduce usable coverage.
FASTENING SCHEDULE
Fastening rates can change
Wind zones, slopes, decks, product instructions, and local requirements can alter nails per shingle.
Detailed calculation process
Roof quantity purchase ledger
Geometry is solved first. Field waste is applied only to field area; accessories use length, underlayment uses un-wasted roof area under the entered net roll yield, and nails use order squares.
roof area = footprint×√(1+(rise/12)²)field order = roof area×(1+waste%)field bundles = ceil(field order/field yield)rolls = ceil(roof area/net roll coverage); nails = ceil(order squares×nails/square)
| Symbol | Meaning | Unit |
|---|---|---|
| footprint | Horizontal roof projection | ft² |
| rise | Vertical rise per 12 run | in/12 |
| field order | Shingle area after waste | ft² |
| yield | Installed package coverage | ft² or ft |
| roll coverage | Net installed underlayment area | ft²/roll |
| nails/square | Entered fastening rate | nails/100 ft² |
- Pitch factor at 6:12 = 1.1180.
- Roof area = 1,800×1.1180 = 2,012.46 ft².
- Field order = 2,012.46×1.10 = 2,213.71 ft².
- Field packages round to 67 bundles; ridge to 3; starter to 2.
- Underlayment rounds to 6 rolls and nails to 7,084.
- Every whole count traces back to its own unrounded basis.
The live result cards and exact ledger above provide the final reconciliation for the current inputs.
Result interpretation
Review every purchase family, not only the bundle total
The primary output is a logistics total across shingle-family bundles; do not treat it as one interchangeable product. Whole-package rounding creates overage. Nail count is a planning quantity and must be converted to cartons by actual carton count.

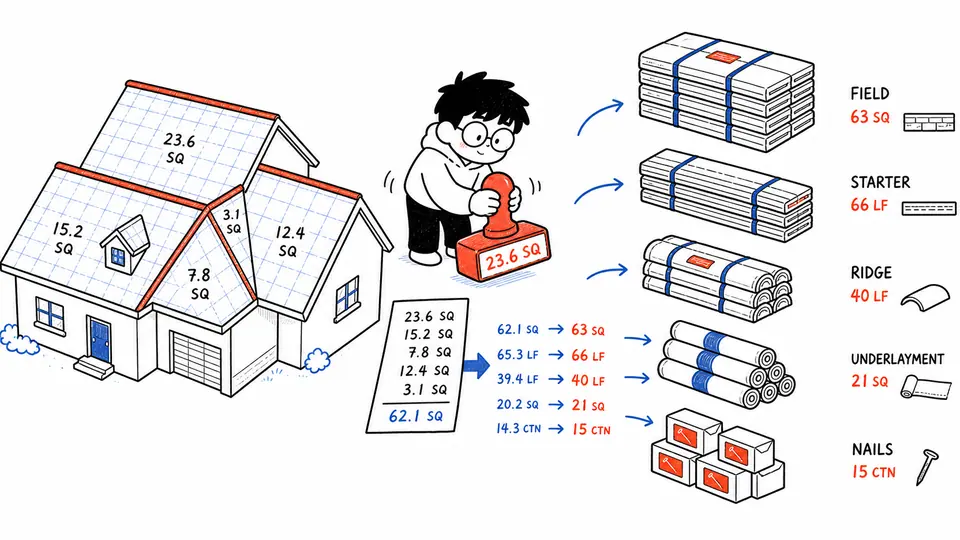

Visual interpretation
Round each roofing material only after its own quantity path
The diagram splits after roof geometry because different materials use different units. Only field waste enlarges the field branch. Package silhouettes show rounding but not warehouse availability or transport weight.
EVIDENCE FOR THIS MODEL
Keep plane geometry and product data behind every yield
Keep the roof plan, scale, footprint boundary, pitch per plane, field product sheet, ridge/starter yields, underlayment lap rules, ice-barrier layout, fastening schedule, waste rationale, package and carton sizes, and installer review.
SCOPE AND LIMITATIONS
Items and detailing outside the material-family counts
- One pitch represents the whole footprint.
- No valley membrane, flashing, ventilation, drip edge, sealant, decking, or carton conversion.
- Roll coverage must already account for required laps.
- The model does not optimize course layout or offcuts.
KEY TERMINOLOGY
Roof ordering and installed-yield terms
- Horizontal footprint
- Plan projection of all roof faces.
- Sloped area
- Actual simplified roof surface.
- Field shingle
- Main weathering course product.
- Net roll coverage
- Usable installed area per roll.
- Starter
- Approved edge course.
- Ridge cap
- Approved hip/ridge covering.
PRACTICAL DECISIONS
Uniform gable versus Mixed porch roof
Uniform gable
One pitch can support a fast check after verifying overhangs, ridge, starter, and roll laps.
Mixed porch roof
Calculate each pitch separately and combine purchase quantities only after applying the correct system details.
AUTHORITATIVE BASIS
References for package-level roof takeoff
Important note
Verify the complete roof assembly and product instructions before purchasing; missing accessories can stop work even when the field bundle count is correct.
Frequently asked questions
Why not add waste to underlayment?
This page expects net roll coverage; project-specific membrane waste must be reflected in that yield or a separate allowance.
Are all bundles the same size?
No. Enter product-specific field and accessory yields.
Does footprint include both sides?
Use the complete horizontal projection of all roof planes.
Why are nails rounded to one nail?
It is an arithmetic count; purchase cartons and on-site loss need a separate rounding step.
Can field shingles become starter?
Only when the approved installation system allows it.
Does this replace a takeoff?
No. It is an auditable quantity screen requiring plane and detail verification.
