Bearing Operating Range Calculator

Screen a bearing operating point against entered catalog speed, working-load, minimum-load, and temperature boundaries and identify the governing margin.

BEARING OPERATING ENVELOPE

Locate one operating point inside four independent bearing boundaries

This calculator organizes catalog and project limits into one traceable operating-envelope screen. Reliability engineers can compare current speed, equivalent load, minimum load, and measured bearing temperature with limits entered from the approved bearing and lubricant documentation. The lowest normalized margin identifies what deserves attention; it does not merge unlike failure mechanisms into a new universal bearing rating.

Governing normalized margin
Governing boundary
Speed headroom
Maximum-load headroom
Minimum-load margin
Temperature headroom

BEARING OPERATING ENVELOPE

Operating-envelope boundary ledger

Start with the governing boundary, confirm that its source applies to the installed bearing, and resolve any negative margin before treating the point as an approved operating condition.

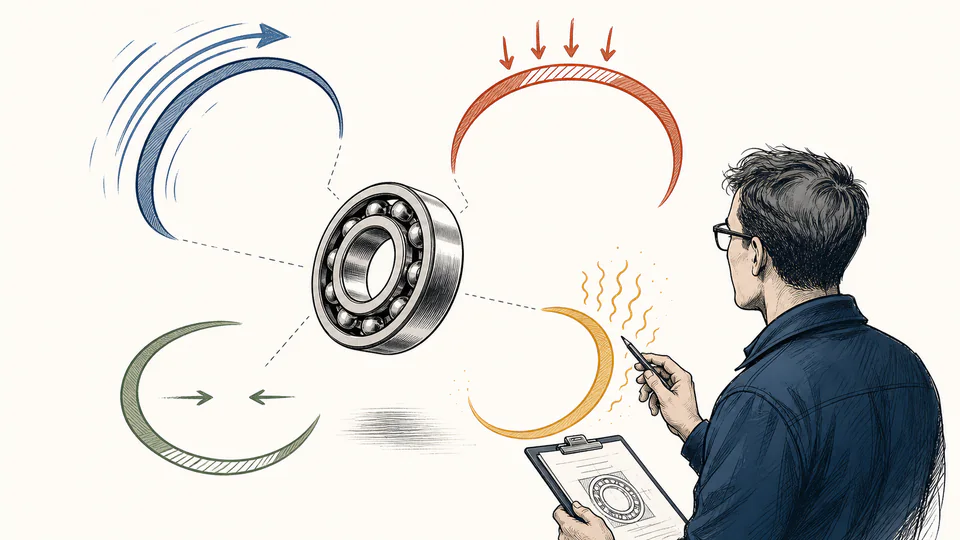

Editorial control-room scene where a bearing sits inside four separate arcs for speed, load, minimum load, and temperature while an operator checks the closest arc
Separate arcs prevent a safe speed result from concealing an overloaded, underloaded, or overheated bearing.
Operating-envelope boundary ledgerUnrounded calculation path
Live calculation ledger based on current inputs
BoundaryCurrent valueEntered limitCalculated marginMargin basis

CURRENT CALCULATION PROCESS

Formula, substitution, intermediate values, and reconciliation

m_governing = min[(n_lim−n)/n_lim, (P_max−P)/P_max, (P−P_min)/P_min, (T_lim−T)/|T_lim|] × 100%

Each entered limit is evaluated on its own physical basis. Speed, maximum load, minimum load, and temperature margins are then normalized only to rank proximity; the calculator does not claim that 10% temperature margin has the same failure probability as 10% speed margin. A negative value marks a crossed boundary.

Current default register: labels, meanings, units, and entered values
Input / symbolEngineering meaning and unitCurrent value
currentSpeedRpmCurrent speed (rpm) — Use stabilized shaft speed at the assessed condition.3200
referenceSpeedRpmEntered reference speed limit (rpm) — Use the catalog limit for the actual lubrication and bearing variant.5000
currentLoadNCurrent equivalent load (N) — Use the same equivalent-load basis used for the working-load boundary.7200
dynamicRatingNBasic dynamic rating C (N) — Candidate bearing catalog dynamic rating.42000
maximumLoadPercentMaximum working load as % of C — Project or manufacturer screen; not generated by the calculator.35
minimumLoadNMinimum required load (N) — Manufacturer minimum load for rolling and cage stability.900
currentTemperatureCCurrent bearing temperature (°C) — State measurement location and stabilization time.78
maximumTemperatureCMaximum permitted temperature (°C) — Must reflect lubricant, seals, clearance, and adjacent component limits.110

    Intermediate values remain unrounded until display formatting.

    HOW TO USE THIS MODEL

    Construct the envelope from matched catalog and field evidence

    1. Identify the exact bearing suffix, cage, seal, clearance, lubricant, and mounting because the valid speed and temperature limits can change with configuration.
    2. Enter the current stabilized speed and equivalent load from the same operating state; do not pair a peak load from one event with a temperature from another.
    3. Set the maximum working-load fraction only from an approved project or manufacturer criterion and calculate minimum load from the bearing-specific guidance.
    4. Use a measured temperature at a documented sensor location after sufficient stabilization and enter the most restrictive applicable temperature limit.
    5. Investigate the lowest margin independently, then review the other three because a positive governing screen does not verify lubrication, life, static safety, vibration, or fit.

    BEARING OPERATING ENVELOPE FUNDAMENTALS

    Four boundaries represent four different risks

    Reference speed
    A catalog thermal-speed reference tied to standardized heat-generation and dissipation assumptions; it is not automatically the absolute limiting speed.
    Working-load ceiling
    A project screen derived from the dynamic rating or another approved criterion. It should not be confused with static capacity or fatigue life.
    Minimum load
    Load required to maintain rolling-element traction and cage motion; too little load can promote skidding even when fatigue demand is low.
    Bearing temperature
    Measured condition influenced by friction, lubricant, fit, preload, neighboring heat, housing, and sensor placement.
    Normalized margin
    Distance to an entered boundary divided by its reference. It ranks proximity but does not convert different mechanisms into equal risk.
    Operating envelope
    The intersection of all applicable limits. An operating point is inside only when every independent condition is satisfied.

    MODEL AND FORMULA

    Rank proximity without inventing a composite bearing standard

    m_governing = min[(n_lim−n)/n_lim, (P_max−P)/P_max, (P−P_min)/P_min, (T_lim−T)/|T_lim|] × 100%

    Each entered limit is evaluated on its own physical basis. Speed, maximum load, minimum load, and temperature margins are then normalized only to rank proximity; the calculator does not claim that 10% temperature margin has the same failure probability as 10% speed margin. A negative value marks a crossed boundary.

    DEEPER ENGINEERING ANALYSIS

    Why an apparently comfortable envelope can still be misleading

    Catalog speed is conditional

    Reference and limiting speeds depend on lubricant viscosity and supply, cage, seals, load, precision, clearance, cooling, and heat rejection. Preserve the exact table notes rather than copying only rpm.

    Temperature margin depends on sensor location

    Outer-ring, housing-surface, oil-return, and embedded sensor temperatures differ. Trends are useful only when the measurement location and ambient correction remain consistent.

    Minimum load and preload interact

    Preload can satisfy rolling-contact traction but also increase heat and fatigue load. Treat preload as part of the load model, not as a free solution to an underload warning.

    WORKED DECISION CASES

    Operating envelopes used in field decisions

    Fan speed increase review

    The current bearing is well below its working-load ceiling, but a variable-frequency drive raises rpm and housing temperature. The speed or thermal boundary can govern even though C/P improves little.

    Lightly loaded standby pump

    A standby machine runs at full speed against little hydraulic load. Fatigue life looks generous, yet the minimum-load margin can become the controlling condition and merits manufacturer review.

    TECHNICAL LANGUAGE

    Terms used when documenting the operating point

    Limiting speed
    Manufacturer limit beyond which special analysis or design changes are required.
    Reference speed
    Thermal reference value established under standardized catalog conditions.
    Skidding
    Sliding caused when rolling elements do not maintain the motion expected from pure rolling.
    Thermal stabilization
    Condition where bearing-system temperature changes slowly because heat generation and rejection are near balance.
    Preload
    Intentional internal load applied to control stiffness, clearance, or rolling-element kinematics.
    Governing boundary
    The entered constraint with the smallest normalized margin at the assessed operating point.

    EVIDENCE AND DATA LINEAGE

    Freeze the boundary provenance before trending margins

    Record bearing manufacturer and catalog revision, full designation, reference versus limiting-speed definition, lubricant and feed method, cage and seal, internal clearance, dynamic and static ratings, source of the maximum-load criterion, minimum-load method, load calculation, sensor identifier and location, ambient temperature, stabilization duration, and the timestamped operating state. An envelope trend is meaningful only when those definitions remain comparable.

    LIMITS AND EXCLUSIONS

    Operating conditions this envelope does not establish

    • The four limits are user-entered and are not independently certified by the calculator.
    • Normalized margins rank proximity but do not represent probability of failure or equal severity.
    • The screen omits fatigue and modified life, static safety, lubrication film, vibration, contamination, misalignment, fits, and clearance.
    • A single operating point does not capture transients, start-stop cycles, thermal lag, or variable-load damage.
    • Temperature limits must reflect the actual sensor location and every affected lubricant, seal, cage, and adjacent component.

    RELIABLE SOURCES

    References for this page’s method and boundaries

    FREQUENTLY ASKED QUESTIONS

    Questions about an operating-envelope result

    Does the largest positive margin prove the bearing is acceptable?

    No. The lowest margin governs this screen, and the model still omits fatigue life, static safety, lubrication adequacy, vibration, fits, clearance, and structural deformation.

    Why include a minimum load boundary?

    Rolling bearings can suffer sliding and cage instability when load is too low relative to speed and lubricant conditions. Low fatigue demand does not guarantee good kinematics.

    Can I use a catalog reference speed as the limit?

    Only if the manufacturer permits that interpretation for the selected bearing and operating conditions. Reference speed and limiting speed are distinct catalog concepts.

    How should I choose the maximum working-load fraction?

    Use an approved design criterion or manufacturer instruction. The calculator deliberately does not invent one from bearing type or industry.

    What if temperature is negative in a refrigerated machine?

    The arithmetic accepts a finite temperature, but lubricant viscosity, seal material, clearance, and condensation usually become the real constraints. Use the applicable low-temperature limits separately.

    Why are unlike margins shown as percentages?

    Normalization helps rank closeness to each entered boundary. It does not imply equal reliability, consequence, or uncertainty across speed, load, and temperature.

    IMPORTANT ENGINEERING NOTE

    An envelope screen cannot authorize operation beyond manufacturer limits

    A qualified rotating-equipment engineer must confirm the applicable catalog limits, bearing life, static safety, lubricant, preload and clearance, fits, cooling, vibration, and machine consequences. Stop and investigate any crossed limit or abnormal trend rather than averaging it with a favorable margin elsewhere.
