PUMP STATION CAPACITY
Turn peak demand into a duty-and-standby arrangement that can be audited
A pump count is not obtained by dividing demand by a catalogue flow and stopping there. This calculator first creates a reserved design flow, rounds the duty count upward, adds the entered standby philosophy, and then reconciles flow margin and design-point power. The result is a planning screen for one declared operating point, not a substitute for a system curve or pump selection.
Reserved design flow (m3/h)—
Duty pumps required—
Total installed pumps—
Duty flow margin (m3/h)—
Installed duty utilization—
Total electrical input (kW)—
PUMP STATION CAPACITY
Pump station capacity and power reconciliation
Use the count and margin to test a proposed station arrangement, then verify each selected pump under one-pump, all-duty, minimum-flow, and degraded conditions. A standby unit changes availability, not normal duty capacity.
| Capacity step | Demand or count | Allowance or rating | Calculated value | Decision meaning |
|---|
CURRENT CALCULATION PROCESS
Formula, substitution, intermediate values, and reconciliation
Qdesign = Qpeak(1 + R); Nduty = ceil(Qdesign/Qpump); Ph = rho g (Qdesign/3600) H / 1000; Pelec = Ph/(etaPump etaMotor)
The count is an integer ceiling, so the model preserves unused flow margin rather than pretending pumps can be installed fractionally. Power is calculated for reserved design flow at entered total head; it does not extrapolate a pump curve.
| Input / symbol | Engineering meaning and unit | Current value |
|---|---|---|
| peakDemand | Peak process demand (m3/h) — Measured or forecast coincident demand before reserve | 420 |
| reserve | Capacity reserve (%) — Project-specific growth, fouling, or contingency allowance | 15 |
| pumpRatedFlow | Rated flow per duty pump (m3/h) — Usable flow at selected system head, not free-delivery flow | 180 |
| standbyPumps | Standby pump count — Whole installed units excluded from normal duty scheduling | 1 |
| totalHead | Total dynamic head (m) — Static plus pipe, fitting, valve, and equipment losses | 48 |
| fluidDensity | Fluid density (kg/m3) — At operating temperature and composition | 998 |
| pumpEfficiency | Pump efficiency at design point (%) — Selected curve or test evidence | 78 |
| motorEfficiency | Motor efficiency (%) — At expected load fraction | 94 |
Intermediate values remain unrounded until display formatting.
HOW TO USE THIS MODEL
Build a station capacity case from one documented operating point
- Enter coincident peak demand from a dated hydraulic model, production plan, or measured profile.
- Add only reserve justified by the project basis; do not hide an unknown system curve inside an arbitrary percentage.
- Enter usable flow of one proposed pump at the selected total head, not its maximum catalogue flow.
- State standby philosophy explicitly and confirm the integer count matches the intended N, N+1, or other availability rule.
- Review flow margin and power, then check minimum continuous stable flow, best-efficiency region, NPSH, motor loading, and parallel operation.
PUMP STATION CAPACITY FUNDAMENTALS
Capacity terms that must not be mixed
- Peak demand
- Maximum coincident process flow expected under the selected operating scenario.
- Capacity reserve
- Explicit allowance above peak demand for documented uncertainty, growth, fouling, or contingency.
- Duty pump
- Unit counted toward normal delivery at the selected design point.
- Standby pump
- Installed unit reserved for outage coverage and excluded from normal duty capacity here.
- Total dynamic head
- Static elevation plus velocity, pipe, fitting, valve, and equipment losses at the same flow.
- Best-efficiency region
- Manufacturer-defined region around a pump efficiency optimum; capacity alone does not prove acceptability.
MODEL AND FORMULA
Round pump count upward, then reconcile hydraulic and electrical power
Qdesign = Qpeak(1 + R); Nduty = ceil(Qdesign/Qpump); Ph = rho g (Qdesign/3600) H / 1000; Pelec = Ph/(etaPump etaMotor)
The count is an integer ceiling, so the model preserves unused flow margin rather than pretending pumps can be installed fractionally. Power is calculated for reserved design flow at entered total head; it does not extrapolate a pump curve.
DEEPER ENGINEERING ANALYSIS
Three checks that frequently overturn the first count
Minimum-flow operation
Peak-sized stations often run at low demand; recirculation, variable speed, staging, and minimum stable flow can govern arrangement.
NPSH and suction availability
Flow and head can be met while suction margin is inadequate; verify vapor pressure, elevation, losses, and transients.
WORKED DECISION CASES
Two decisions supported by this capacity screen
Cooling-water expansion

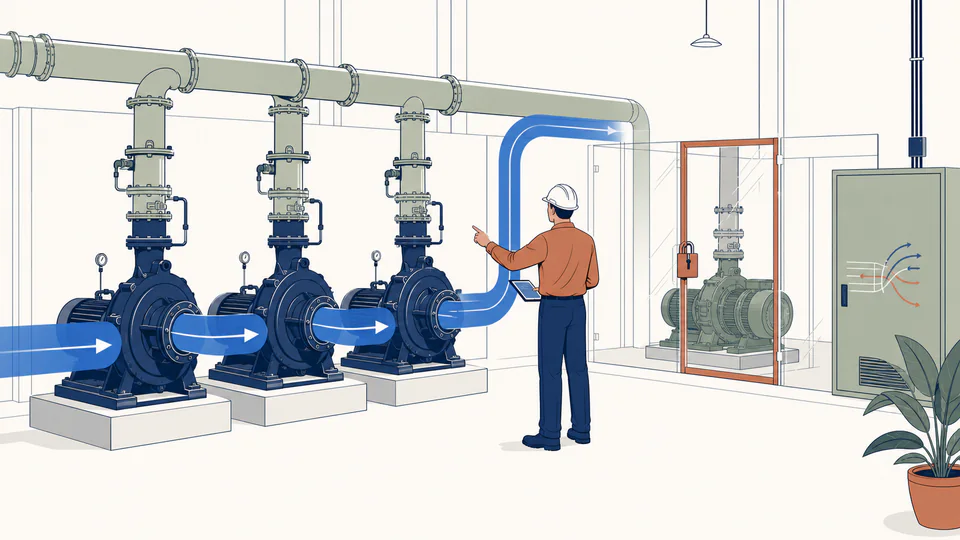

A plant raises 420 m3/h peak demand by a documented 15% allowance. Three 180 m3/h duty pumps cover 483 m3/h with 57 m3/h margin, while a fourth unit remains standby; the team then checks the actual parallel system intersection.
Wastewater wet-well availability
A station compares two larger duty pumps with three smaller units plus standby. Both meet reserved flow, but staging, minimum inflow, outage consequence, and maintenance access differ.
TECHNICAL LANGUAGE
Pump capacity glossary
- System curve
- Required head as a function of flow for the complete connected hydraulic system.
- Operating point
- Intersection of pump and system curves.
- N+1
- One additional installed unit beyond duty count for outage coverage.
- NPSH available
- Suction total head above fluid vapor pressure at the pump reference.
- Runout
- High-flow curve region where power, vibration, or other limits may be exceeded.
- Turndown
- Range over which the station reduces output while maintaining acceptable operation.
EVIDENCE AND DATA LINEAGE
Retain demand basis and selected-point evidence
Keep the demand profile or model revision, simultaneity assumptions, reserve rationale, fluid condition, system curve, selected pump curve, impeller and speed, rated flow at head, efficiencies, motor data, standby philosophy, minimum-flow method, NPSH assessment, unrounded results, and final approval.
LIMITS AND EXCLUSIONS
What this planning calculator does not establish
- It does not solve parallel or variable-speed pump curves or the connected system curve.
- It does not calculate NPSH available, suction transients, water hammer, minimum flow, cavitation, vibration, or allowable operating region.
- It does not prove reliability, code compliance, motor starting adequacy, protection, control stability, or safe maintenance isolation.
RELIABLE SOURCES
References for this page's method and boundaries
FREQUENTLY ASKED QUESTIONS
Questions about pump station capacity
Why is duty count rounded upward?
Pumps are discrete units. Rounding down leaves reserved demand uncovered; rounding up exposes actual margin.
Does the standby pump increase design capacity?
Not here. It increases availability when a duty unit is unavailable.
Can I use pump nameplate maximum flow?
Use flow available at selected head inside an acceptable operating region, not free-delivery or runout flow.
Why is total head required?
Flow determines count, but motor and energy implications require the same flow and head.
Does positive margin prove a safe selection?
No. NPSH, parallel stability, minimum flow, vibration, materials, and transients remain.
Should reserve always be 15%?
No. The default is illustrative; use a project-specific allowance and avoid double counting.
RELATED CALCULATORS
Continue the engineering review
Use these follow-on models to test a different boundary without hiding it inside this calculation.
IMPORTANT ENGINEERING NOTE
Treat the result as a station-planning screen, not pump selection approval
Final selection requires current manufacturer curves, a verified system curve, suction and transient analysis, compatible materials and seals, motor and electrical checks, control review, applicable codes, and competent engineering approval.
