Lens Equilibrium Calculator

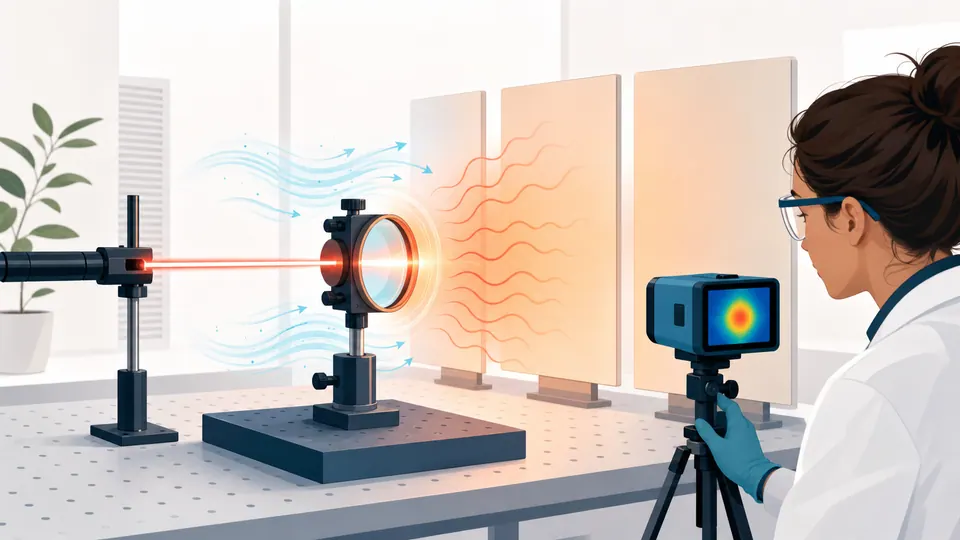

Solve the uniform steady lens temperature where absorbed optical power is balanced by convection and net grey-body radiation to ambient surroundings.
CURRENT MODEL
Enter the declared physical case
Laser-lab technicians and preliminary thermal designers screening whether lens absorption may require better cooling or a coupled thermal model.
Decision supportedEstimate a steady temperature rise and identify the convective and radiative cooling split before selecting mounts, coatings, or detailed thermal analysis.
LIVE PHYSICAL ANALYSIS
Absorbed power and cooling-path balance
The live thermal ledger places the equilibrium lens temperature between ambient input and the current convection/radiation split.
| Quantity | Expression | Current value | Unit |
|---|
How to use
Close a steady lens heat balance
- Use time-averaged incident optical power for the operating state.
- Enter measured or coating-supported absorption as a percentage of incident power.
- Estimate the exposed area participating in both modeled cooling paths.
- Enter an effective convection coefficient and grey-body emissivity for the same environment.
- Set the shared ambient air and radiative-surroundings temperature.
- Review the cooling split and residual, then add mount conduction or transient analysis when consequential.
Thermal fundamentals
Five layers of the steady balance
- Absorbed optical power
- Incident average watts times the absorption fraction; transmitted light is not heat here.
- Lumped temperature
- One uniform lens temperature replaces internal spatial gradients.
- Convection
- A linear hA deltaT loss to the surrounding fluid.
- Net radiation
- Grey-body exchange proportional to the difference of fourth powers in kelvin.
- Steady equilibrium
- The state where generated heat equals total modeled cooling and stored energy stops changing.
Calculation method
Solve the monotonic temperature balance
The model converts absorption once, forms absorbed watts, converts ambient Celsius to kelvin, and solves convection plus net radiation by bounded bisection.
Convection and radiation are recomputed at the solved temperature. Their sum must match absorbed power; the residual is the independent conservation check.
Average power versus pulse peaks
Steady temperature follows average heat input, while coating damage or stress can be governed by single-pulse fluence and transient gradients.
Missing mount conduction
A metal retainer can dominate cooling. Omitting it may deliberately screen high, but that conservatism is unknown until contact conductance is measured.
Property drift with temperature
Absorption, convection, emissivity, conductivity, and alignment can change as the optic warms, making the constant-property root only a first estimate.
Detailed calculation process
Symbols, current substitution, intermediate quantities, and reconciliation
eta_abs P_in=hA(T-T_amb)+epsilon sigma A(T^4-T_amb^4)The monotonic balance is solved in kelvin by bisection; the energy residual uses unrounded losses.
| Symbol | Meaning | Default | Unit |
|---|---|---|---|
| P_in | Incident average optical power | 20 | W |
| eta_abs | Absorption fraction | 0.02 | dimensionless |
| A | Exposed cooling area | 0.012 | m2 |
| h | Convection coefficient | 10 | W/(m2 K) |
| epsilon | Surface emissivity | 0.85 | dimensionless |
| T_amb | Ambient temperature | 298.15 | K |
Waiting for valid inputs.
Evidence to retain
Document every thermal path and optical loss
Keep incident-power averaging interval, wavelength, coating and substrate absorption data, beam footprint, lens geometry and mass, exposed area, airflow and h method, emissivity and finish, ambient/surroundings temperatures, mount contact, thermocouple placement, calibration, and uncertainty.
Scope and limitations
What the equilibrium temperature omits
- No heat capacity, warm-up time, pulsed transient, or internal temperature gradient
- No mount, adhesive, barrel, or active-cooling conduction
- No temperature-dependent absorption or material properties
- No beam-profile hot spot, coating defect, contamination, or nonlinear absorption
- No thermal stress, refractive-index gradient, focus drift, or damage threshold
- No safety or lifetime certification
A lumped uniform lens temperature, constant absorption and properties, constant convection coefficient, grey diffuse radiation to large isothermal surroundings, and no mount conduction or transient heat capacity.
Key terminology
Lens-thermal glossary
- Absorptance
- The fraction of incident optical power converted to lens heat.
- Convection coefficient
- An effective proportionality between area, temperature difference, and fluid heat loss.
- Emissivity
- Surface thermal-radiation efficiency relative to an ideal blackbody.
- Net radiation
- Emission minus absorbed irradiation from the modeled surroundings.
- Lumped model
- A model treating the entire lens as one uniform temperature.
- Power residual
- Absorbed watts minus recomputed cooling watts at the numerical root.
Practical cases
Two heating cases that require different follow-up
Continuous alignment laser
A coated lens absorbs a small fraction of 20 W continuously. The steady screen estimates whether passive air cooling is plausible before adding measured mount conduction.
High-energy pulse train
Average watts predict a modest equilibrium rise, but per-pulse fluence is high. The team uses this result only for long-term heat load and separately evaluates coating damage and transient gradients.
Important note
Steady average temperature is not an optical-damage limit
Use measured absorption, transient finite-element analysis, mount conduction, coating fluence limits, thermal-stress data, and qualified optical review when hardware safety or focus stability depends on temperature.
Frequently asked questions
What is in equilibrium on this page?
The lens internal energy is steady because absorbed optical watts equal convective plus net radiative watts; the optical field itself is not in equilibrium.
Why use average optical power rather than pulse energy?
A steady balance needs time-averaged heating. Short-pulse peaks can create transient gradients or damage that this lumped model does not capture.
Why can zero absorption return ambient temperature?
With no modeled heat generation, net convection and radiation are zero at ambient, so that is the steady boundary regardless of power passing through.
Does the result include heat conduction through the mount?
No. Omitting mount conduction is explicit and can overpredict temperature when the mount provides a strong thermal path.
Can emissivity and convection both be zero?
Only when absorbed power is also zero. Positive heating with no cooling path has no finite steady solution in this model.
Is a temperature below glass transition automatically safe?
No. Coating limits, thermal stress, gradients, contamination, adhesives, pulse damage, and alignment drift can govern much earlier.
