Motor Load Calculator

Estimate motor shaft output, percent load, torque and losses from measured three-phase voltage, current, power factor and efficiency.

MOTOR OPERATING LOAD

Convert field electrical readings into an estimated shaft-load point

This calculator turns a simultaneous three-phase voltage, current, and power-factor measurement into real electrical input, applies an efficiency appropriate to the operating point, and compares estimated shaft power with rated output. It is intended for screening underload, overload, and torque demand before a calibrated power study.

Estimated motor load
Estimated shaft output (kW)
Electrical input (kW)
Operating torque (N·m)
Modeled conversion loss (kW)
Rated-power torque at speed (N·m)

MOTOR OPERATING LOAD

Motor input-to-load calculation ledger

Use the result to decide whether a direct shaft-power measurement, load reduction, resizing study, or condition investigation is warranted. Do not infer efficiency from current alone.

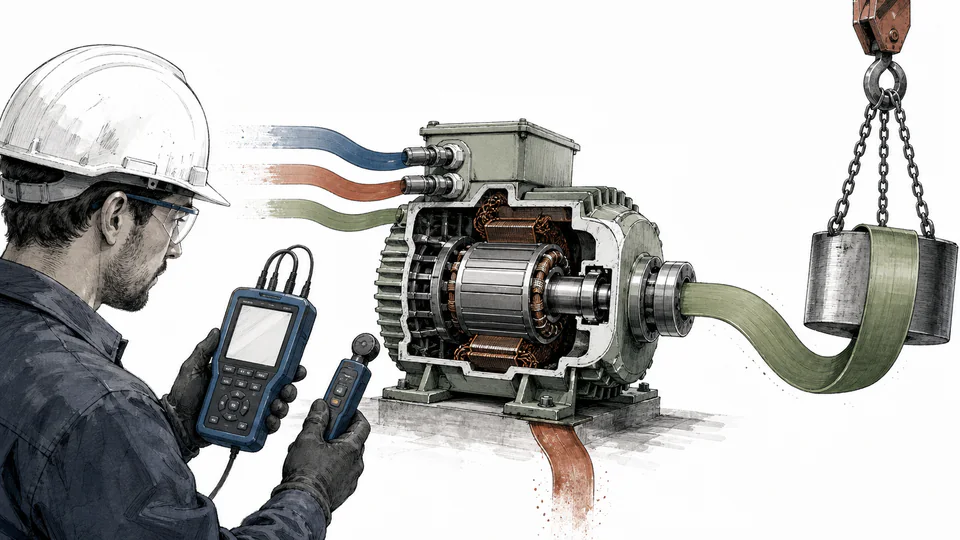

Editorial motor pulling a weighted drum while three electrical meter leads feed a power ribbon that narrows into shaft work
Voltage, current and power factor establish real input; efficiency determines how much reaches the shaft.
Motor input-to-load calculation ledgerCurrent unrounded calculation path
Live calculation ledger based on current inputs
Calculation stagePrimary inputSecondary inputFactorResultUnit or meaning

CURRENT CALCULATION PROCESS

Formula, current substitution, intermediate values, and reconciliation

P_in = √3 V_LL I_L PF / 1000; P_shaft = ηP_in; Load% = 100P_shaft/P_rated

The electrical measurement establishes real input power. Efficiency converts input to estimated mechanical output, which is compared with rated shaft power and converted to torque at measured speed.

Symbols, engineering meanings, units, and default values
SymbolEngineering meaningUnitDefault
V_LLMeasured line-to-line voltageV400
I_lineMeasured line currentA60
PFTrue three-phase power factorratio0.86
etaSelected operating efficiencyratio0.91
P_ratedRated shaft outputkW37
nMeasured loaded speedrpm1470

    Intermediate values remain unrounded until display formatting.

    HOW TO USE THIS MODEL

    Measure one operating point without mixing timestamps

    1. Capture line voltage, line current, power factor, and speed over the same stable interval.
    2. Confirm readings represent a reasonably balanced three-phase motor and appropriate true-RMS instruments.
    3. Select efficiency at the estimated operating point, not automatically the nameplate full-load value.
    4. Enter rated mechanical output in kW and compare both load percentage and torque.
    5. Repeat at meaningful process states if load cycles; preserve the raw measurements and instrument details.

    MOTOR OPERATING LOAD FUNDAMENTALS

    What a motor-load estimate depends on

    Real input power
    Three-phase real power depends on voltage, current, and power factor—not current alone.
    Shaft output
    Rated motor kW is normally mechanical output; electrical input must be reduced by losses.
    Operating efficiency
    Efficiency varies with load, voltage, temperature, design, and condition.
    Torque-speed relation
    At a given shaft power, lower speed means higher torque because P = Tω.
    Unbalance
    Unequal phase voltages or currents can raise heating and invalidate a single balanced reading.
    Load profile
    One measurement describes one state; cycling machinery needs representative intervals or logging.

    MODEL AND FORMULA

    Three-phase real power followed by shaft conversion

    P_in = √3 V_LL I_L PF / 1000; P_shaft = ηP_in; Load% = 100P_shaft/P_rated

    The electrical measurement establishes real input power. Efficiency converts input to estimated mechanical output, which is compared with rated shaft power and converted to torque at measured speed.

    DEEPER ENGINEERING ANALYSIS

    Field interpretation beyond percent load

    Current is not a load meter

    Magnetizing current remains at light load and power factor changes, so percent current can materially overstate percent shaft load.

    Efficiency must match the point

    Using a full-load efficiency at 25% load can bias shaft output. A manufacturer curve, segregated-loss method, or torque measurement improves confidence.

    Process and motor data must align

    A high calculated load may be genuine process demand, mechanical friction, voltage condition, or measurement error. Compare with process throughput and condition evidence.

    WORKED DECISION CASES

    Typical load-screening cases

    Oversized constant-duty motor

    A fan motor repeatedly calculates below 35% load. The result supports a detailed energy and starting-torque study before considering a smaller motor.

    Unexpected process overload

    A pump motor approaches rated output after a valve change. Torque and load estimates identify the operating state that needs hydraulic and protection review.

    TECHNICAL LANGUAGE

    Motor load measurement terms

    Line voltage
    RMS voltage measured between phase conductors.
    True power factor
    Real power divided by apparent power, including displacement and distortion effects.
    Shaft power
    Mechanical power delivered by the rotating shaft.
    Rated output
    Nameplate continuous mechanical output under stated conditions.
    Slip
    Difference between synchronous speed and rotor speed in an induction motor.
    Load factor
    Operating shaft output divided by rated shaft output.

    EVIDENCE AND DATA LINEAGE

    Field records to keep

    Retain timestamped phase voltages and currents, true power factor, speed, motor nameplate, efficiency source, process state, instrument accuracy, connection, ambient, duty cycle, and unrounded outputs. Note any phase unbalance or waveform distortion.

    LIMITS AND EXCLUSIONS

    Boundaries of the load estimate

    • Balanced sinusoidal three-phase operation is assumed; harmonics and unbalance need phase-resolved analysis.
    • Efficiency is entered rather than solved and may dominate uncertainty at light load.
    • The model excludes starting, transient torque, thermal history, service factor authorization, VFD waveform effects, and protection settings.

    RELIABLE SOURCES

    References for this page's method and boundaries

    FREQUENTLY ASKED QUESTIONS

    Motor-load estimation questions

    Can I estimate load from current percentage alone?

    Not reliably. Magnetizing current and changing power factor make current non-linear with shaft load, especially below full load.

    Should I use nameplate efficiency?

    Use operating-point efficiency if available. Nameplate full-load efficiency may be a rough screen but can bias light-load results.

    What if phases are unbalanced?

    Measure all phases and evaluate voltage/current unbalance and heating. This balanced formula is not sufficient for a materially unbalanced motor.

    Why is measured speed required?

    Speed converts shaft power to torque and helps identify slip or process changes that a power percentage alone can hide.

    Does a result above 100% prove overload?

    It indicates the entered estimate exceeds rated shaft output. Verify instruments, efficiency, rating basis, service factor, duty, ambient, and actual load before deciding.

    Can this calculate single-phase motor load?

    No. The formula and field set are explicitly for balanced three-phase operation.

    RELATED CALCULATORS

    Continue the electrical engineering review

    Use the next model to test a separate operating boundary without hiding it inside this result.

    IMPORTANT ENGINEERING NOTE

    Do not change motor or protection solely from this screen

    Confirm sustained load with qualified measurements and review starting torque, process requirements, temperature, duty, voltage, VFD compatibility, protection, and applicable manufacturer guidance before resizing or operating decisions.
